Fusion 3S 25/13

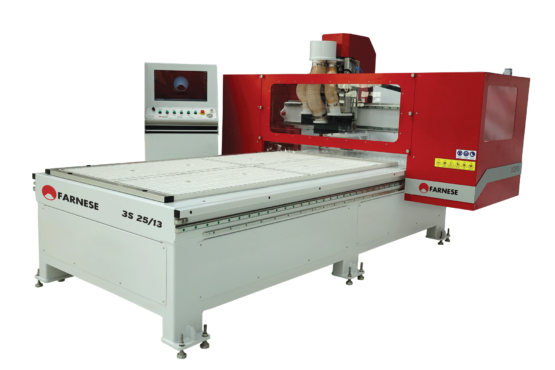

CNC Router 3S 25/13 Features

Gantry – Style CNC Machine for processing solid wood, MDF/Particle board panels, plastics, aluminium and composite materials.
High performance (industry proven) precision main router spindle with two additional drilling spindles.
Heavy-duty solid steel machine frame construction.

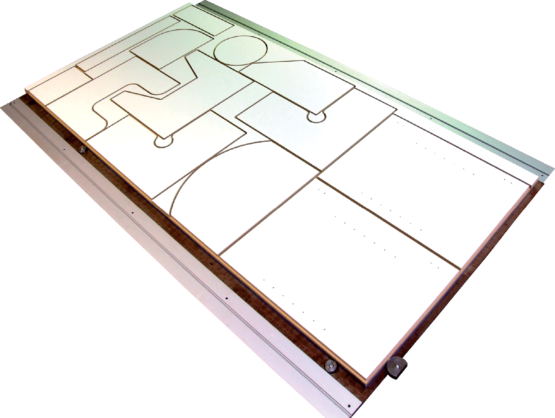

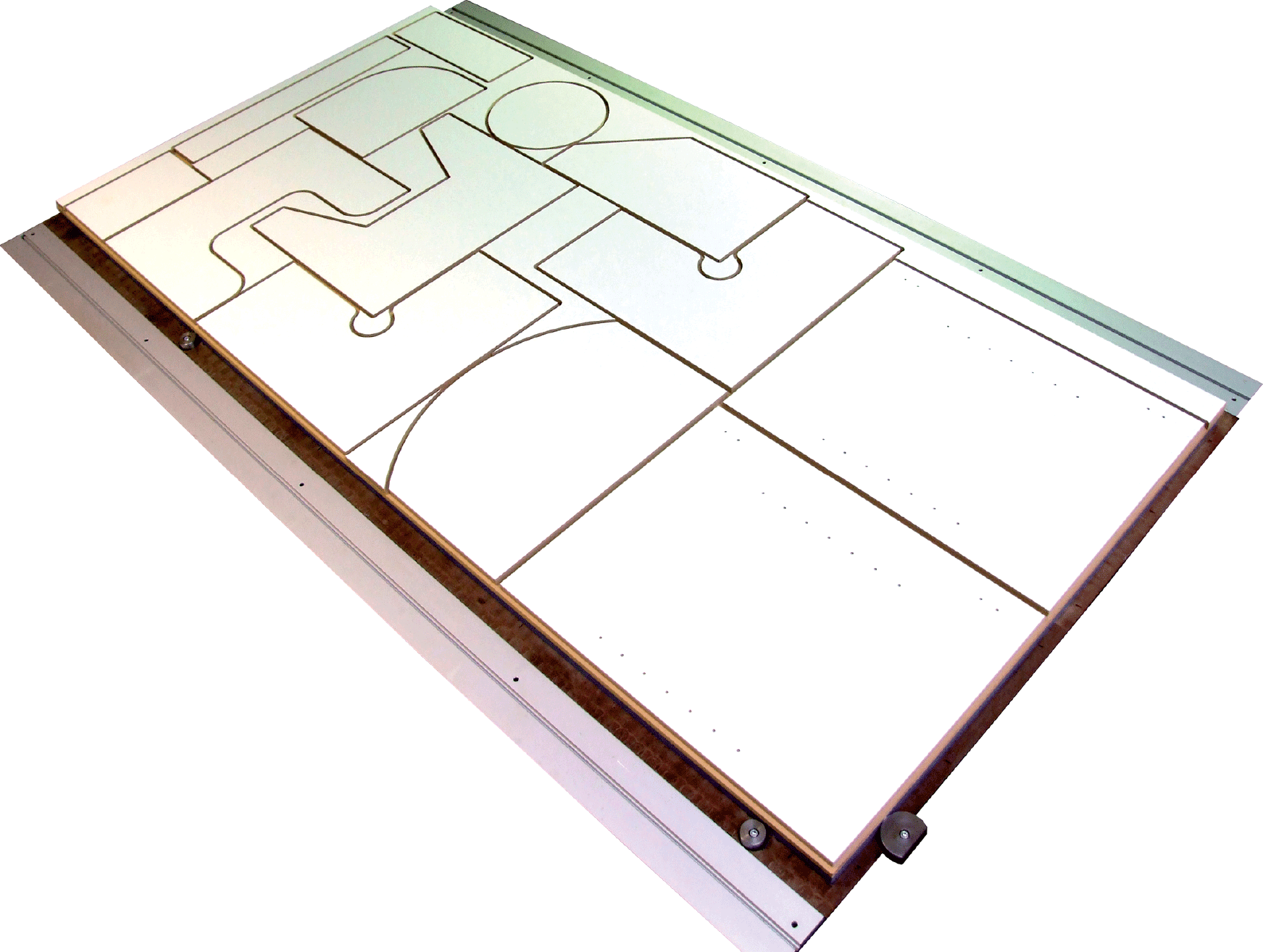

Nested Based Manufacturing (NBM) machine.
Reliable and cost effective CNC Router solution

Description

TABLE SIZE

Table size: 1220 x 2440 mm

Larger models up to 2100mm x 11000mm available

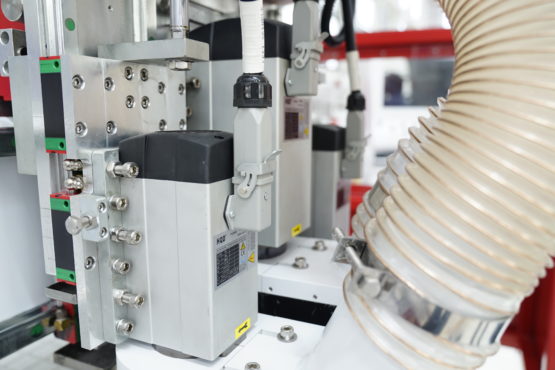

SPINDLES

High precision 4.5kW router with ER32 collet chuck.

Additional 2x 1.5Kw spindles and ER20 collet chucks

PC CONTROL

On-board PC with user friendly Windows 11 operating system. Network interface facility for file sharing. File format for the controller software configured in

.NC.

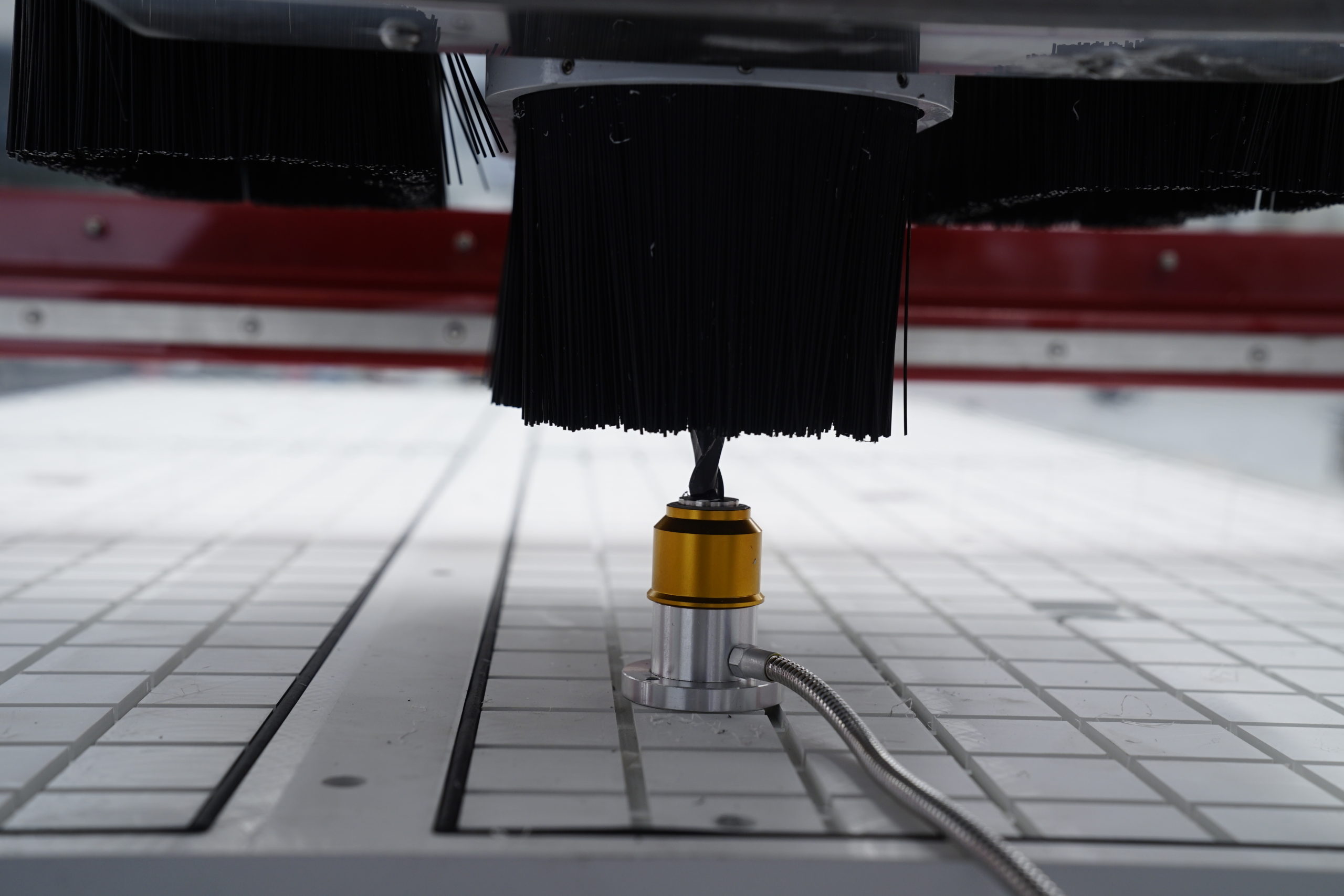

TOOL CALIBRATION PAD

The integrated sensor pad allows the operator to quickly and accurately calibrate each tool. The tool length is then automatically stored in the tool offset file.

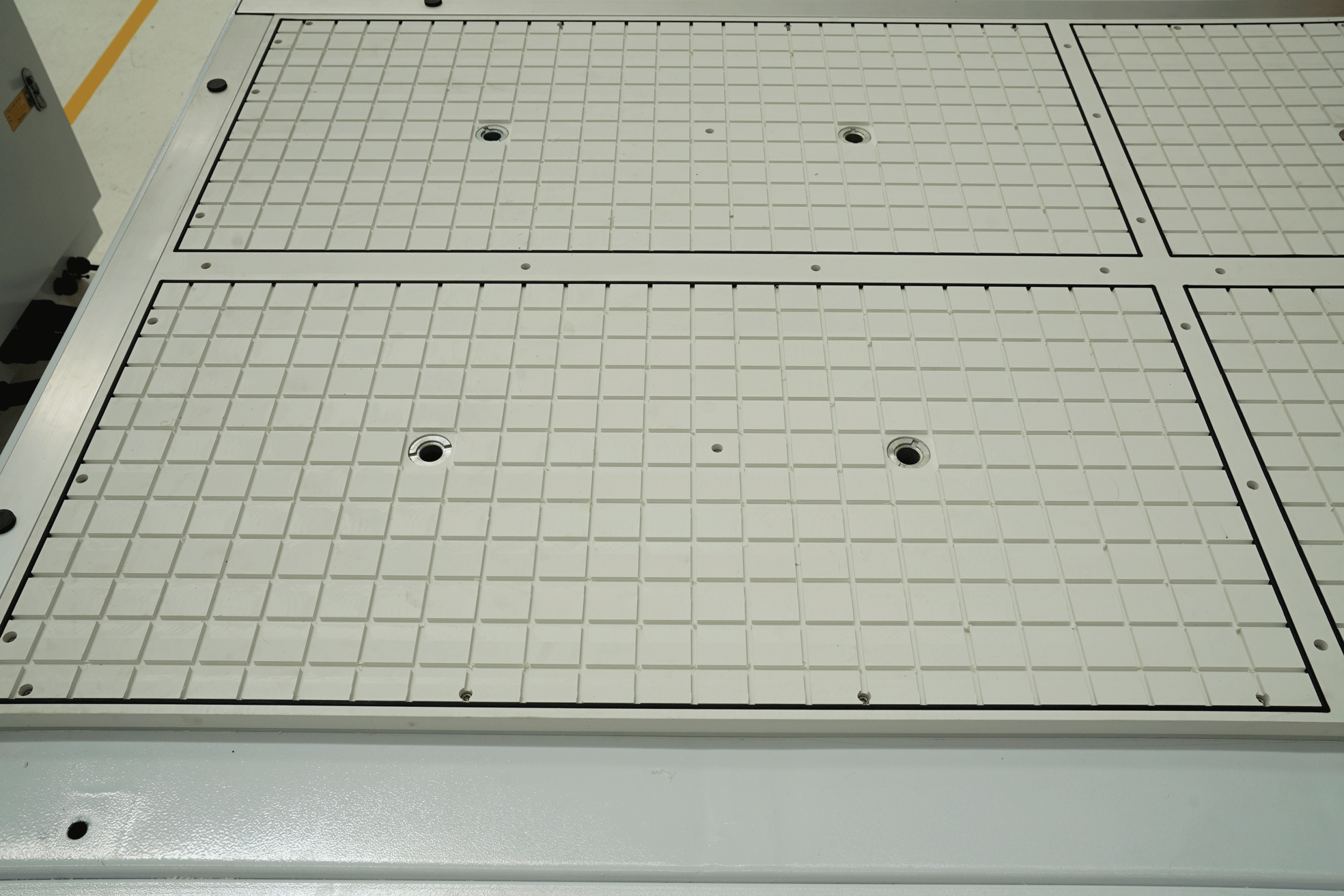

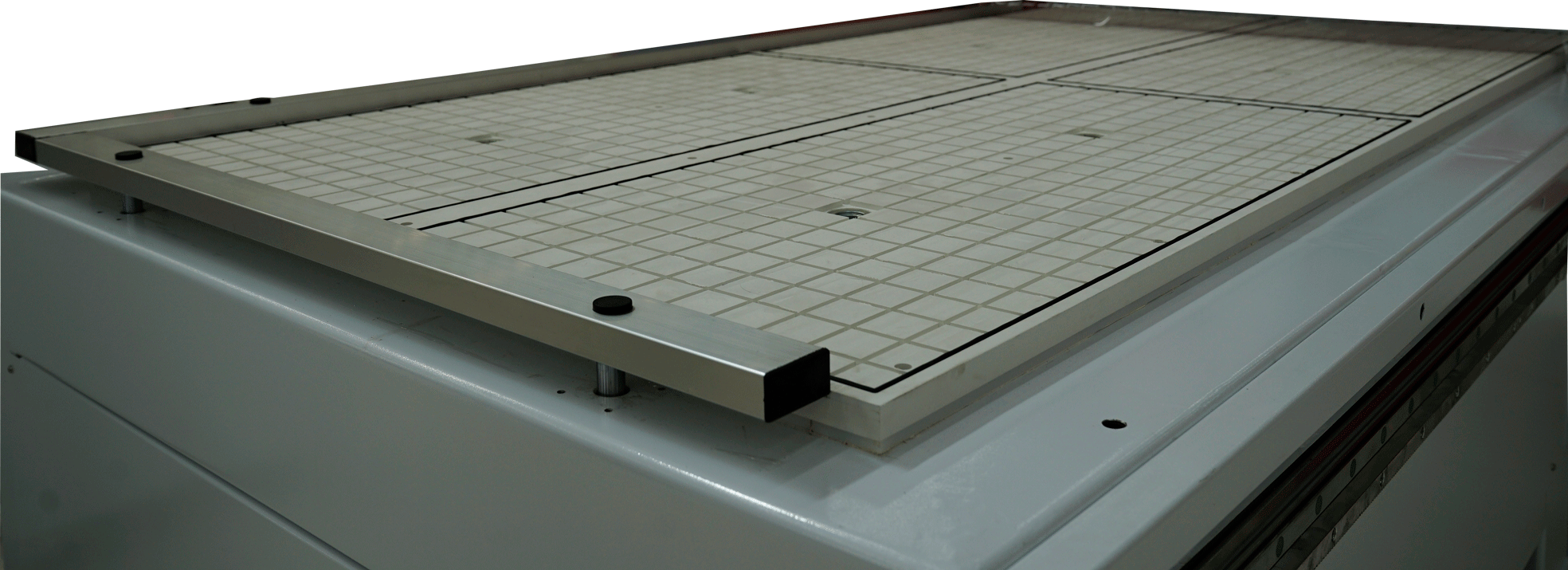

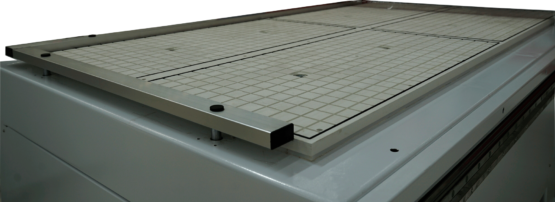

PHENOLIC TABLE TOP

There are 4 individually controlled vacuum zones. The table surface has a gasket matrix configuration with T-Slots along the Y axis, allowing various vacuum options e.g. spoilboards and jigs.

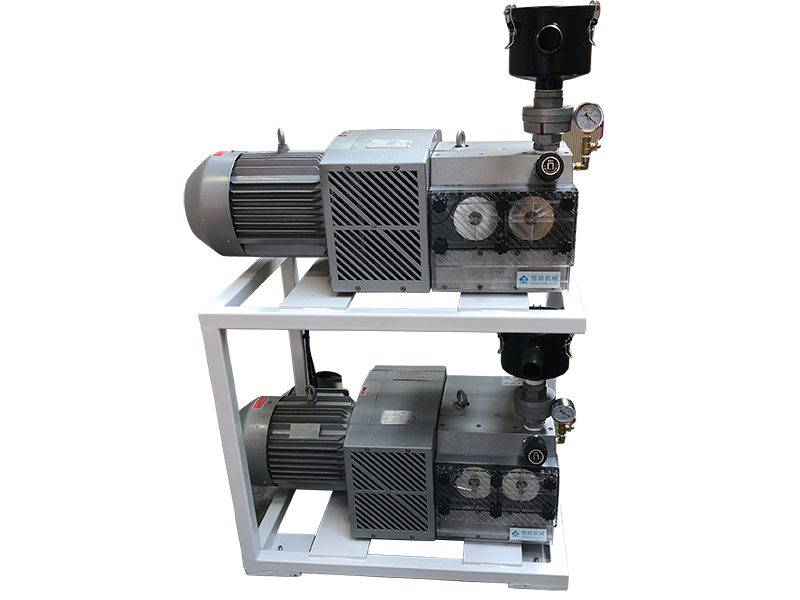

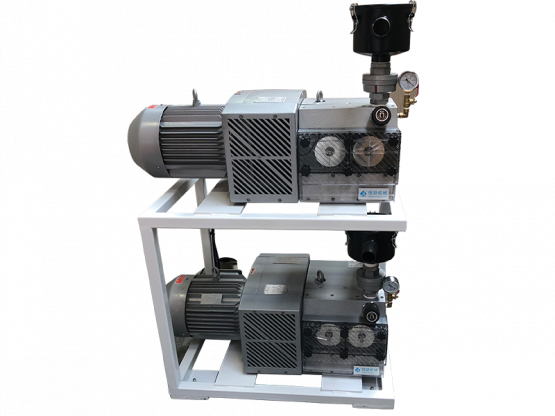

VACUUM PUMP

Vacuum for the table top is provided by two quality 5.5kW(7.5Hp) rotary vane vacuum pump. These two pumps displaces 320 cubic metres per hour. Oil-free discharge gas is guaranteed, even in adverse operating conditions.

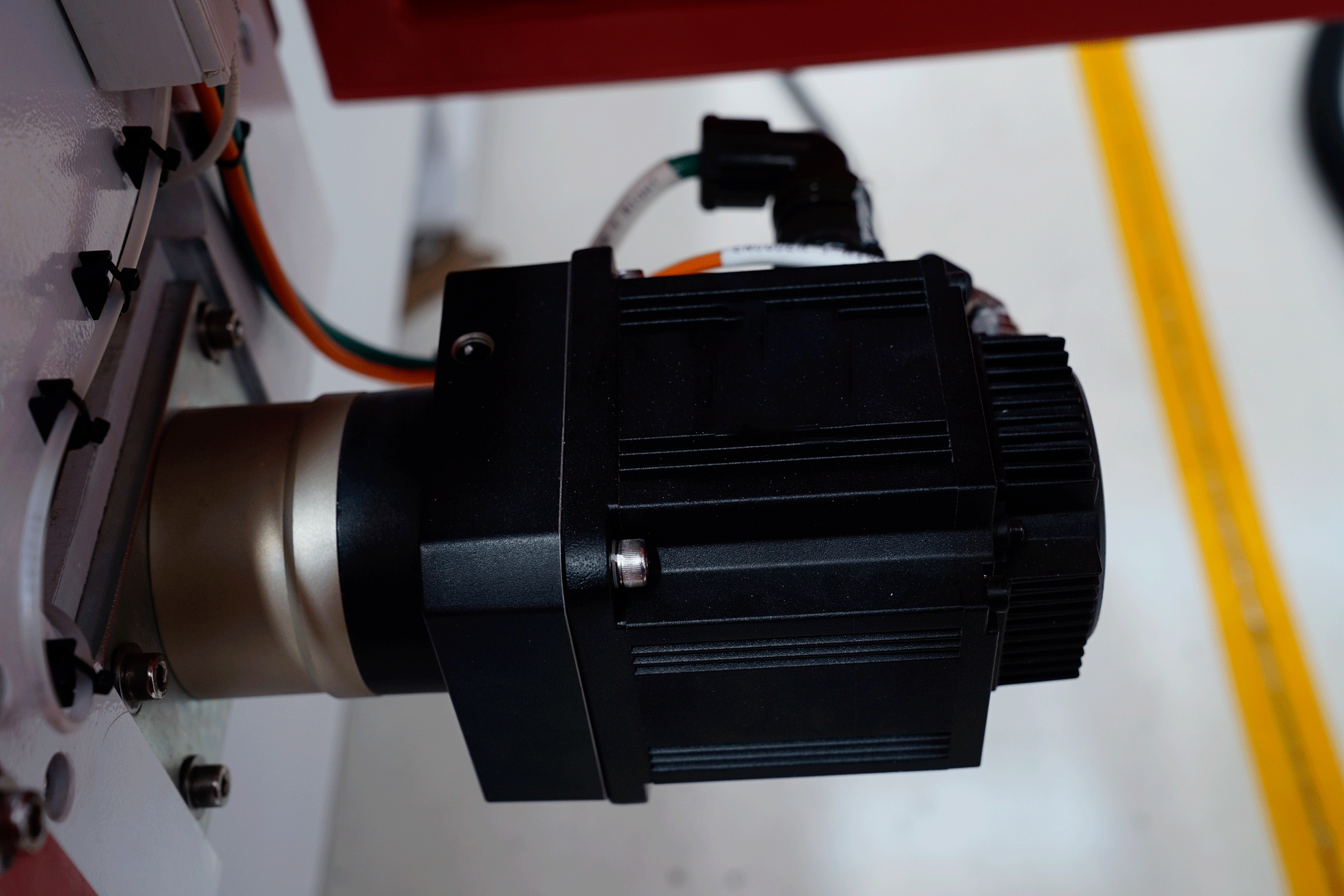

DRIVE GUIDE SYSTEM

Superior quality linear guides and bearings units are used on all three of the machine’s axis. Precise movement along the X and Y axis is achieved via induction hardened oblique rack and pinion drive systems. Z axis (vertical) movement accuracy is assured via a precision ground re-circulating ball screw.
