3D Disto Templater

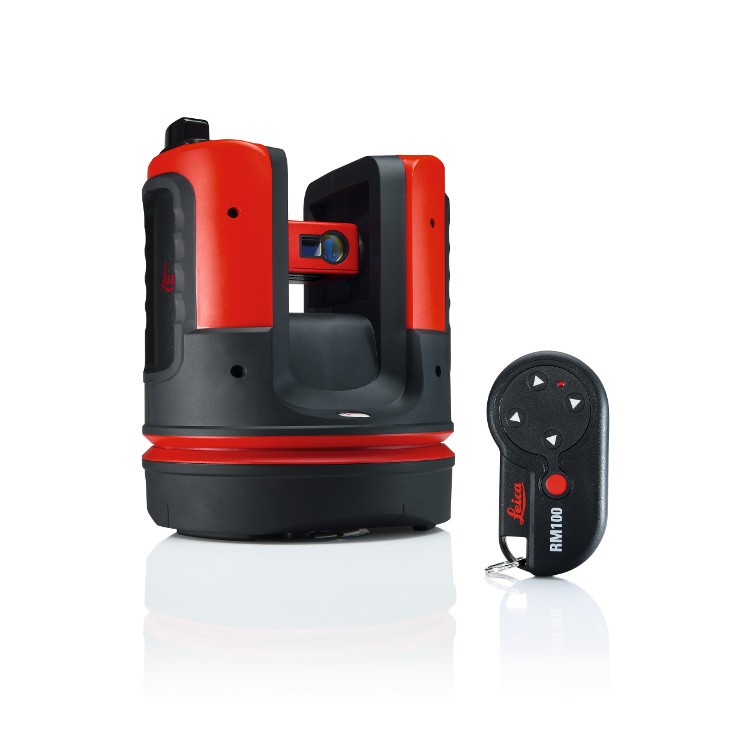

Lecia 3D Disto Pro

ELaser™ Pro 3D is a complete 3D measuring and modeling system. It measures freeform 3D surfaces as well as 2D planer geometry.

The ELaser Pro series provides the ultimate in 3D measuring accuracy and control.  Using unique best fit calculations and the ability to define 2D work planes, ELaser creates intelligent CAD/BIM models that are friendly to CAD solid modelers, cabinet design software, and other design software solutions.



Watch the Videos

For More Information, Click for a Brochure

Recommended for

  • Architectural Millwork Applications
  • Cabinet Layout and Design

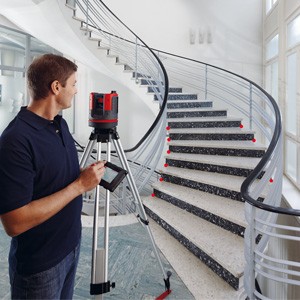

  • Stairs and Railings
  • Wall Cladding
  • Floor Plans
  • Indoor/Outdoor
  • Commercial Spaces large or small
  • 3D Modeling/BIM
  • Quality Control/Construction verification
  • Glass/Ornamental Metal Works
  • Soffits/Windows/Doors/Arches
  • Countertop Templating/Full Height Backsplash
  • Shower Enclosures/Tub Surrounds/Fireplaces
  • Any 3D or 2D layout need

Features of Measure Manager

  • Measures points, lines, arcs, circles, rectangles, splines, polylines, planes, and distances
  • Fully integrated 3D and 2D capability
  • Measure and model any complex 3D freeform space
  • Import  2D or 3D DXF models of design for verification in the shop or field
  • Establish and collect data for infinite number of 2D planes.
  • Allows 3D data to be snapped to 2D planes for better CAD manipulation
  • Collect any number of points desired to create ‘best fit’ geometry for improved fit and installation
  • Creates complete 3D CAD/BIM models of any space for design, fabrication and installation requirements
  • Automatically scans profile data between any two points
  • Automatically scans grid or points
  • Optional cabinet layout module for integrating with cabinet design software
  • Exports DXF/DWG/IGS to any CAD
  • Extensive CAD functionality (drawing/editing/detailing)
  • Defines XYZ coordinate system to datum line for any other desired location
  • Automatically converts splines into lines and arcs for CNC use
  • Measures in Imperial or Metric
  • Also includes all features of the Pro 2D version:
